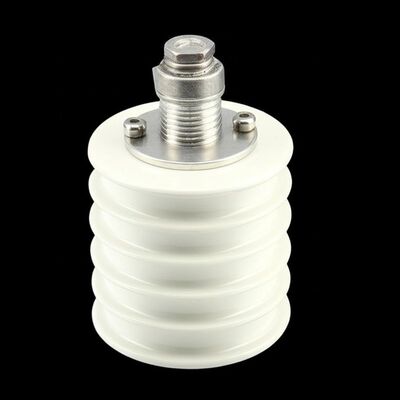

27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers

  • 27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers
  • 27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers
Τόπος καταγωγής XIAN, ΚΊΝΑ
Μάρκα XIWUER
Πιστοποίηση ISO9001,ISO14001,ISO45001
Αριθμό μοντέλου CT8-2-27KV-38PF
Ποσότητα παραγγελίας min 1 Τεμάχιο
Τιμή Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες χαρτοκιβώτιο
Χρόνος παράδοσης 5-7 ημέρες
Όροι πληρωμής L/C,T/T
Δυνατότητα προσφοράς 8,000,000 ετησίως

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Nominal Capacitance Range 35 ~42 Application used as sensor unit of electrified display device below 35KV
Επισημαίνω

Ceramic Live Line Capacitor

,

Medium Voltage Live-Line Indication Capacitor

,

Capacitive Voltage Dividers Capacitor
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
27KV 38PF Live Line Capacitors Hv Ceramic 3.6KV-40.5KV XIWUER
27KV 38PF Voltage Indicator High Voltage Ceramic Capacitor 3.6KV-40.5KV
Applications
  • Medium Voltage live-line indication
  • Re-routing of systems in the event of inadvertent disconnection
  • Capacitive voltage dividers for MV voltage measurement
Voltage Nominal Capacitance (pF) Nominal Capacitance Range
Test Frequency:1kHz±20%
Test Voltage:1V±0.2V		 Power Frequency Withstand Voltage
(in the insulation oil)		 Partial Discharge Lightning Impulse (kV)
(Maximum Peak Voltage)
(in the insulation oil)
27kVAC 38 37~41pF 70kVAc/5min 26.4kVac≤10PC 125
27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers 0 27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers 1
Notes
  • Terminals are soldered to the ceramic parts with 221° melting point solder.
  • Capacitors of this type have been used in transformer oil and in SF6 gas. In these cases we would recommend a paint coating on the otherwise bare ceramic surface.
  • Components are lead(Pb) free and RoHS compliant.
COMPANY OVERVIEW

Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 ㎡, with employees of 2300, and about 580 technicians, among them, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components.

The company has the largest production scale of Varistor, SPD (Surge Protective Device) and HV Ceramic Capacitor in China, with the following main products:

  • Varistors & SPD
  • HV Ceramic Capacitor
  • Capacitive Voltage Divider
  • Thermistor

The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation.

Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan, USA, Hong Kong etc., with the customers like India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spain and India etc.

Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.
